三菱FX3U PLC密码破解解密软件开发入门

【三菱FX3U PLC密码破解解密软件开发入门】

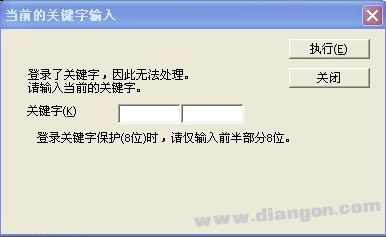

对于三菱plc FX2N的密码破解，在返回的数据中都能找到密码，密码是在软件里比较的，而FX3U就不同了，FX3U有两段密码，看下图：





第1段密就和FX2N的一样，加的是明码，第2段就不一样了，密码加上后都变了，算法也完全变了，但在网上有高手能做到直读密码，我们被FX3U这种PLC的强大功能所吸引，对三菱PLC大家都用习惯了，觉的用起来顺手，在整个工控行业中用的比例很大，因此，对破解这款PLC产生的浓厚的性趣。【三菱FX3U PLC密码破解解密软件开发入门】



FX3U有的可以2个口编程，一个是通常用的圆口，还有个可以扩展个232接口，我先试圆口，通过串口软件监控的数椐。



以下是我调试监控的数据。

#       Time        Function                        Data ( Hex )

1       [00000000]  IRP_MJ_CREATE                   Port Opened - Gppw.exe

2       [00000000]  IOCTL_SERIAL_SET_BAUD_RATE      Baud Rate: 115200

3       [00000000]  IOCTL_SERIAL_SET_LINE_CONTROL   StopBits: 1, Parity: Even, DataBits: 7

4       [00000001]  IRP_MJ_WRITE                    Length: 0001, Data: 05

5       [00000002]  IRP_MJ_READ                     Length: 0001, Data: 06

6       [00000002]  IRP_MJ_WRITE                    Length: 0011, Data: 02 30 30 45 30 32 30 32 03 36 43

7       [00000003]  IRP_MJ_READ                     Length: 0001, Data: 02

8       [00000003]  IRP_MJ_READ                     Length: 0001, Data: 42

9       [00000003]  IRP_MJ_READ                     Length: 0001, Data: 31

10      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 35

11      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 45

12      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 03

13      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 46

14      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 30

15      [00000004]  IRP_MJ_WRITE                    Length: 0011, Data: 02 30 30 45 43 41 30 32 03 38 45

16      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 02

17      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 37

18      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 31

19      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 33

20      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 46

21      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 03

22      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 45

23      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 34

24      [00000005]  IRP_MJ_WRITE                    Length: 0011, Data: 02 30 30 45 30 32 30 32 03 36 43

25      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 02

26      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 42

27      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 31

28      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 35

29      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 45

30      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 03

31      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 46

32      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 30

33      [00000006]  IRP_MJ_WRITE                    Length: 0011, Data: 02 30 30 45 43 41 30 32 03 38 45

34      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 02

35      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 37

36      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 31

37      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 33

38      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 46

39      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 03

40      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 45

41      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 34

42      [00000015]  IRP_MJ_CLOSE                    Port Closed

6、上述 从串口监控到的数据是十六进制的数据，还真不好看，先转换成ASC码，就好看多了。

#       Time        Function                        Data ( String )

1       [00000000]  IRP_MJ_CREATE                   Port Opened - Gppw.exe

2       [00000000]  IOCTL_SERIAL_SET_BAUD_RATE      Baud Rate: 115200

3       [00000000]  IOCTL_SERIAL_SET_LINE_CONTROL   StopBits: 1, Parity: Even, DataBits: 7

4       [00000001]  IRP_MJ_WRITE                    Length: 0001, Data:

5       [00000002]  IRP_MJ_READ                     Length: 0001, Data:

6       [00000002]  IRP_MJ_WRITE                    Length: 0011, Data: 00E02026C

7       [00000003]  IRP_MJ_READ                     Length: 0001, Data:

8       [00000003]  IRP_MJ_READ                     Length: 0001, Data: B

9       [00000003]  IRP_MJ_READ                     Length: 0001, Data: 1

10      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 5

11      [00000003]  IRP_MJ_READ                     Length: 0001, Data: E

12      [00000003]  IRP_MJ_READ                     Length: 0001, Data:

13      [00000003]  IRP_MJ_READ                     Length: 0001, Data: F

14      [00000003]  IRP_MJ_READ                     Length: 0001, Data: 0

15      [00000004]  IRP_MJ_WRITE                    Length: 0011, Data: 00ECA028E

16      [00000004]  IRP_MJ_READ                     Length: 0001, Data:

17      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 7

18      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 1

19      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 3

20      [00000004]  IRP_MJ_READ                     Length: 0001, Data: F

21      [00000004]  IRP_MJ_READ                     Length: 0001, Data:

22      [00000004]  IRP_MJ_READ                     Length: 0001, Data: E

23      [00000004]  IRP_MJ_READ                     Length: 0001, Data: 4

24      [00000005]  IRP_MJ_WRITE                    Length: 0011, Data: 00E02026C

25      [00000006]  IRP_MJ_READ                     Length: 0001, Data:

26      [00000006]  IRP_MJ_READ                     Length: 0001, Data: B

27      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 1

28      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 5

29      [00000006]  IRP_MJ_READ                     Length: 0001, Data: E

30      [00000006]  IRP_MJ_READ                     Length: 0001, Data:

31      [00000006]  IRP_MJ_READ                     Length: 0001, Data: F

32      [00000006]  IRP_MJ_READ                     Length: 0001, Data: 0

33      [00000006]  IRP_MJ_WRITE                    Length: 0011, Data: 00ECA028E

34      [00000007]  IRP_MJ_READ                     Length: 0001, Data:

35      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 7

36      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 1

37      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 3

38      [00000007]  IRP_MJ_READ                     Length: 0001, Data: F

39      [00000007]  IRP_MJ_READ                     Length: 0001, Data:

40      [00000007]  IRP_MJ_READ                     Length: 0001, Data: E

41      [00000007]  IRP_MJ_READ                     Length: 0001, Data: 4

42      [00000015]  IRP_MJ_CLOSE                    Port Closed

电脑发：00E0202      ’查询D8001的值

PLC回：B15E           ‘回复为5EB1，回复的数据高位在后、低位在前，所以要对调个位，

5EB1转为10进数据值为：24241，24表示PLC型号FX2N或3U，241表示版本号，

电脑发：00ECA02码   ’查询D8101的值

PLC回：713F            ‘回复为3F71转为10进数据值为：16241，16表示PLC型号为FX3U，241表示版本号



以上这一大段数据也就是编程软件查询一下PLC的型号，以便接下来按相应的通迅协议进行通迅。
